Three Function Electric Hospital Bed with PE Side Rails - ALK06-B03P-B

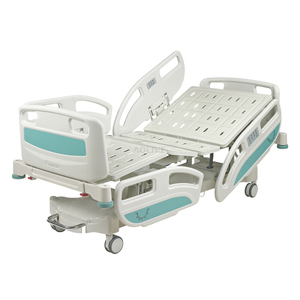

Three Function Electric Hospital Bed Overview

ALK06-B03P-B is a three-function electric hospital bed designed for hospital wards, nursing facilities and healthcare projects. The bed supports electric backrest adjustment, leg-section adjustment and height adjustment to assist daily patient positioning, nursing care and transfers.

The model features a steel mattress platform, streamlined PE headboard, PE side rails, battery backup and 125 mm central-brake castors. Side rail angle indicators help caregivers check the backrest and leg-section positions during daily operation.

Key Specifications

• Model: ALK06-B03P-B
• Overall size: L2260 × W1040 × H480–720 mm
• Backrest adjustment: 0–70° (±5°)
• Leg-section adjustment: 0–30° (±5°)
• Height adjustment: 480–720 mm
• Motor system: Three IP54 protection-class motors, one control box and one handset

Electric Adjustment Functions

• Electric backrest adjustment for patient positioning and daily care
• Electric leg-section adjustment for comfort and nursing support
• Electric height adjustment for transfers and caregiver working height
• Handset operation for convenient bedside control

Safety and Construction Features

• Wholly moulded cold steel plate mattress platform
• Integrated steel frame with electrostatic powder-coated finish
• Anti-aging and anti-rust surface treatment
• Streamlined PE headboard and PE side rail design
• Automatic lifting side rail sections that can be raised or lowered
• Angle indicators on both side rails for backrest and leg-section positions
• Battery backup for use during a power failure
• Four 125 mm castors with central brake system

Standard Accessories

• IV pole

Typical Applications

• General hospital wards
• Clinics and medical centres
• Nursing homes and long-term care facilities
• Rehabilitation and healthcare projects

Documentation and Compliance

The supplied product information references IEC 60601-1, IEC 60601-2-52 and ISO 13485:2016, together with CE documentation and FDA-related documentation. Documentation scope, validity and market applicability must be verified for the selected model, configuration and destination market before purchase or import.

Frequently Asked Questions

What are the three electric functions of ALK06-B03P-B?

ALK06-B03P-B provides electric backrest adjustment, leg-section adjustment and height adjustment.

Does this electric hospital bed have battery backup?

Yes. Battery backup is included to support operation during a power failure.

What type of side rails are used?

The bed uses PE side rails with automatic lifting rail sections. The side rails also include angle indicators for checking backrest and leg-section positions.

How are the castors controlled?

The bed has four 125 mm castors with a central brake system to support bedside mobility and secure positioning.

Can I request documents for my target market?

Yes. Please provide the model number, required configuration and destination country. AOLIKE can check applicable documentation for the selected product and market.

Request a Quote

Send us your required quantity, destination country and voltage requirement. Our team will provide a suitable configuration, quotation, lead time and documentation support.
