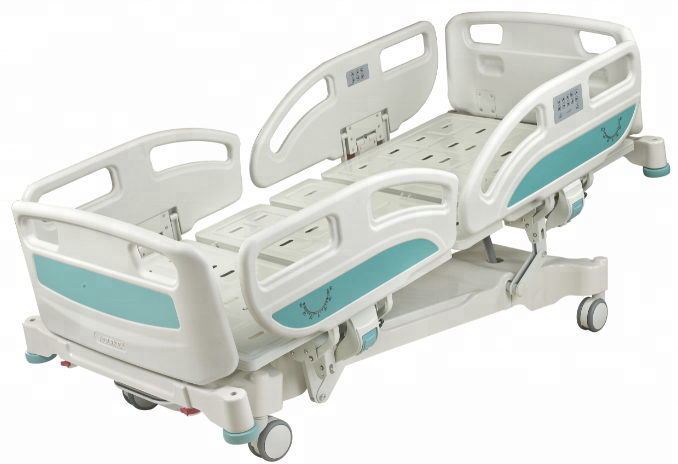

Adjustable multifunctional electrical Camas de hospital for hospital ICU room

Product Description

Model No.	ALK-BA501EZE
Power supply	220V/110V,50HZ/60HZ
Outer dimensions	L2220*W1040mm(±10mm)
Mattress platform	L1945*W900mm(±10mm)
Bed height	460-700mm(±10mm)
Bed extension(optional)	200mm(±10mm)
Angle of back section	0 ~ 70° (±5°)
Angle of leg section	0 ~ 35°(±5°)
Trendelenburg and Retrendelenburg	≥12°
Height of siderails (from mattress platform)	450mm(±10mm)
Safe working load	240KGS
CPR	Manual and Electric
X-Ray	optional
Hypertensive and cardiac chair	Control by Nursing pad (optional)

Adjustable multifunctional electrical Camas de hospital for hospital ICU room

Features:

1. Cold steel plate wholly molded surface, integrated frame treated with electrostatic spraying. Anti-aging and anti-rust,IPX4 protection against water and dust , motors Standard protection class: Ip54
2. PE head and foot board removable for CPR function
3. 4 pcs siderails with control system at both sides, Convenient operation for patients and nurses.
4. One set of Nursing pad with locking system, which can lock all the control, Examination function, Hypertensive and cardiac chair function and Alarm function(optional)
5. Manual and one key control electric CPR, easy and convenience to operate
6. Battery backup, used in case of power failure
7. Four dia125mm castors with central brake system
8. Angle Indicator: The angle indicator at each side rails, show the angles of back and leg section.
9. Foot section correct to horizontal position, convenient for patients when leg traction
10. Back section decompression function, make the patient more comfortable
11. Standards: IEC 60601-1, IEC 60601-2-52, ISO13485:2016
12. Certificate: CE, SFDA,ISO13485,ISO9001

Dimensions:

1. L2220* W1040 *H460-700mm
2. Sleep size: L1945*W900mm
3. Angle of back section 0 ~ 70° (±5°)
4. Angle of leg section: 0 ~ 35°(±5°)
5. Angle of Trendelenburg and Reverse Trendelenburg: 0 ~ 13°(±2°)

Accessories:

1. Stainless steel IV pole with four hooks.
2. 4pcs Drainage bag holder, 2 holders in each side
3. Mattress(optional)

Highlight feature

Manual and electric CPR

Electric CPR function and Manual CPR function

Back section decompression function

When the back rises, the back plate and the abdomen plate can retreat, increasing the area of the abdomen area, minimizing the abdominal pressure of the patient, and making the patient feel more comfortable

Foot section correct to horizontal position

Convenient for patients when leg traction,more comfortable feeling

Manufacturing Technique

Robotic ensure 360° full smooth wedlding

Panasonic and OTC Robotic ensure 360° full smooth wedlding.

Auto-Packing system

KUKA® Auto-Packing system import from Gernmany, which can improve work efficiency, reduce labor costs, improve the quality of product packaging.

11 Process epoxy painting

ASTM testing anti-baterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact,Effectively resist E. coli and Staphylococcus aureus, antibacterial rate is over 95%
