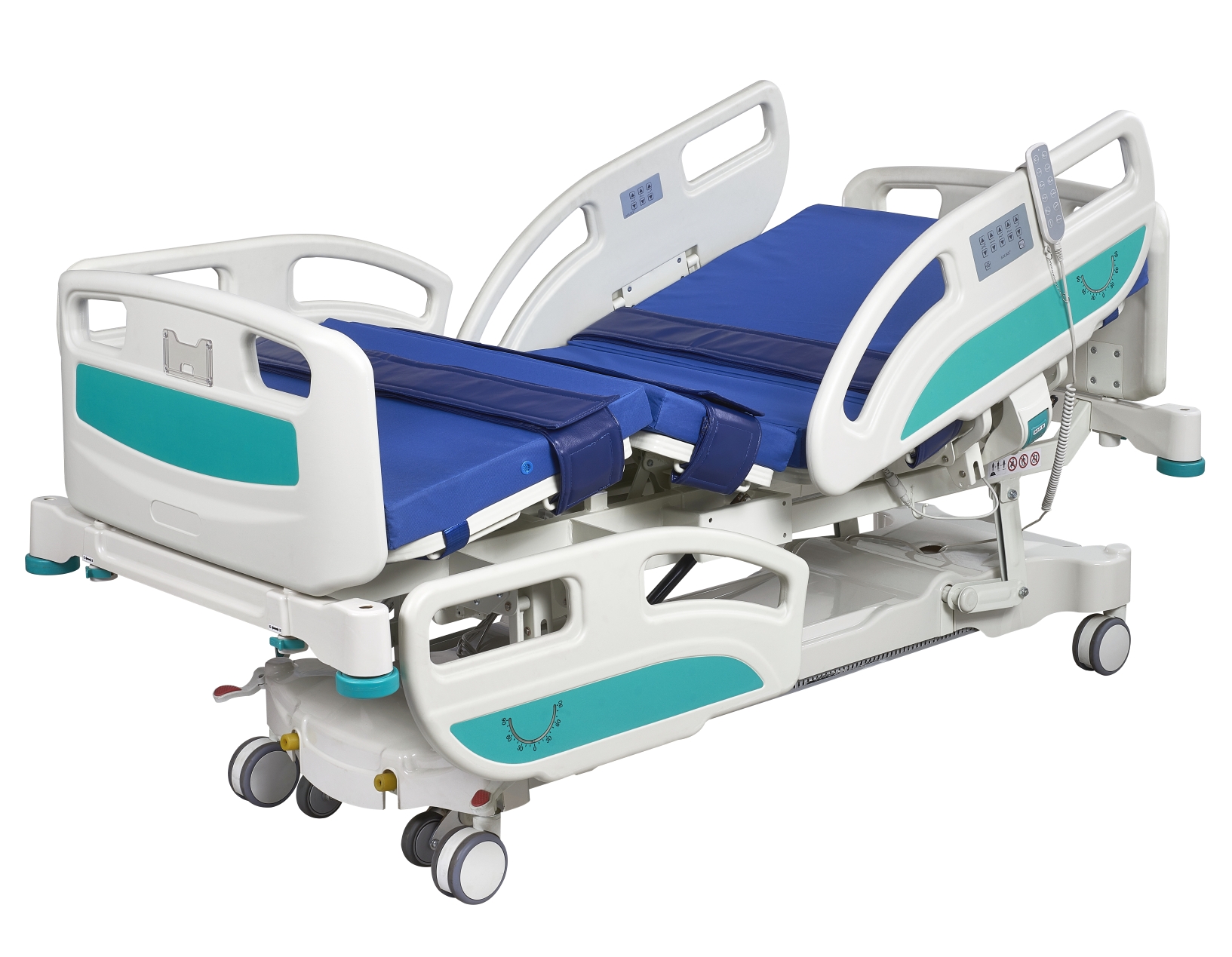

The AOLIKE ALK-BA506EZE is an electric standing ICU bed designed for hospitals, rehabilitation facilities and long-term care projects that require progressive patient positioning, daily nursing support and rehabilitation-oriented care.

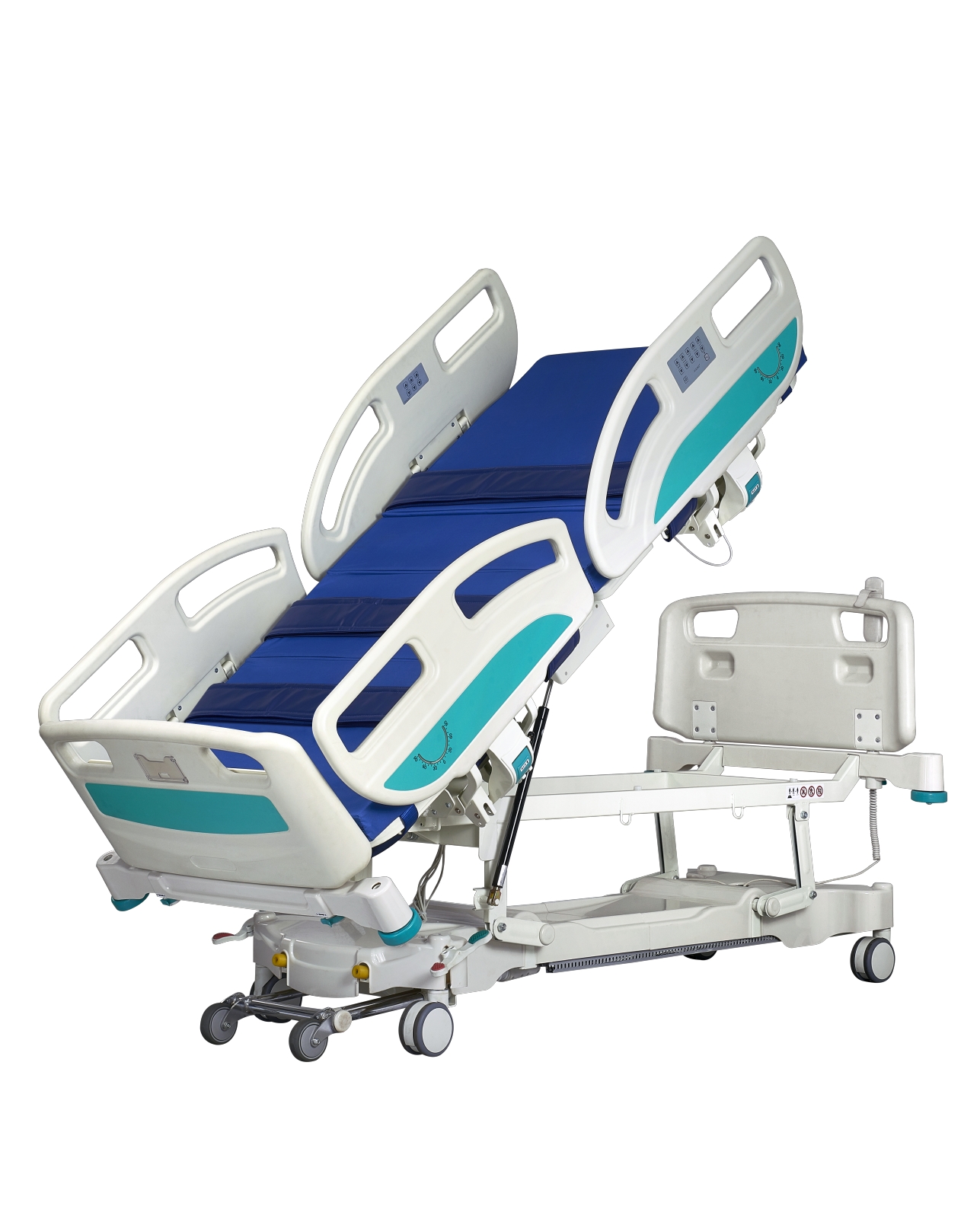

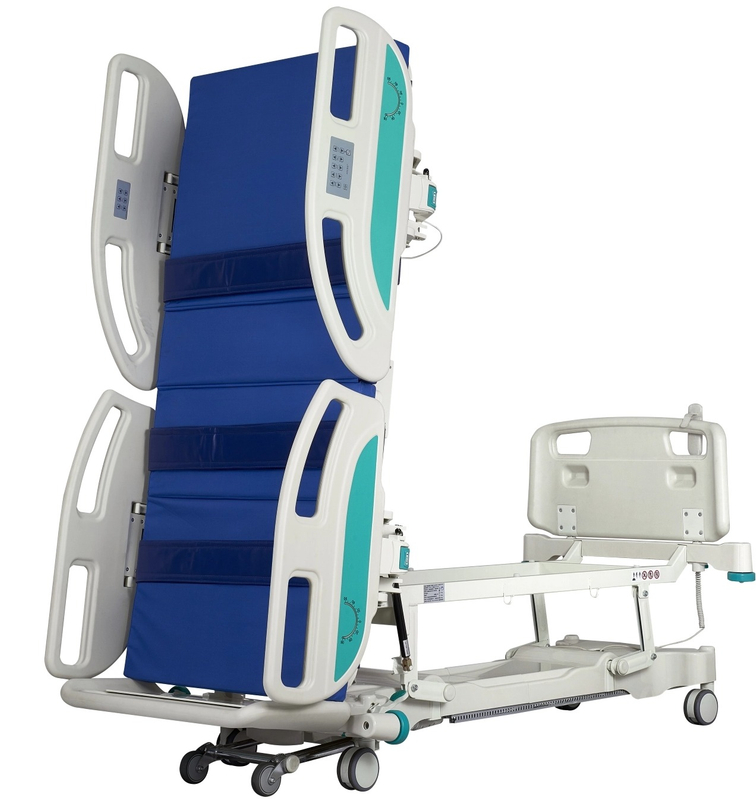

Its electric standing function supports controlled movement from a lying position to an upright position of up to 80°. Combined with electric backrest, leg-rest, height and tilt adjustments, the bed helps caregivers create suitable care positions according to patient-care protocols and clinical workflows.
For patients with limited mobility, gradual upright positioning can be an important part of daily nursing and rehabilitation routines. The ALK-BA506EZE is designed to support progressive standing and flexible positioning without requiring a separate transfer device for every adjustment.
Electric standing adjustment: 0–80°
Electric backrest adjustment: 0–70°
Electric leg-rest adjustment: 0–30°
Electric bed-height adjustment: 520–760 mm
Trendelenburg and reverse Trendelenburg positioning: 0–13°
The available positions can support nursing care, patient comfort, rehabilitation routines and caregiver access. Final use should always follow professional clinical assessment and the facility’s operating procedures.
An integrated weighing scale is available as an optional configuration for selected projects. It can help caregivers obtain patient weight information without transferring the patient to a separate scale, supporting routine assessment and care planning.
Scale availability, measurement range, accuracy, calibration requirements and applicable documentation should be confirmed according to the selected model and destination market before order confirmation.
The ALK-BA506EZE combines rehabilitation-oriented positioning with practical safety and nursing features for institutional care environments.
Safe working load: 240 kg
Four protective side rails for patient support during care and position changes
Central braking castors for controlled movement and stable parking
Battery backup to support key electric functions during temporary power interruption
Position-angle indication for convenient caregiver reference
Foot-section horizontal correction and backrest decompression design
Removable PE head and foot boards for cleaning and maintenance access
Cold-rolled steel bed platform with electrostatic powder coating
| Model | ALK-BA506EZE |
| Overall Dimensions | 2185 × 1040 mm |
| Mattress Platform Size | 1945 × 900 mm |
| Bed Height Range | 520–760 mm |
| Standing Adjustment | 0–80° |
| Backrest Adjustment | 0–70° |
| Leg-rest Adjustment | 0–30° |
| Trendelenburg / Reverse Trendelenburg | 0–13° |
| Safe Working Load | 240 kg |
| Power Supply | 220 V / 110 V, 50/60 Hz |
Optional integrated weighing scale
IV pole with hooks
Drainage-bag holders
Project-specific accessory and configuration options
This electric standing hospital bed is suitable for ICU step-down areas, rehabilitation wards, long-term care facilities, nursing homes and healthcare projects requiring adaptable positioning and robust daily-use equipment.
Contact AOLIKE for product specifications, drawings, optional weighing-scale configuration, quotation, MOQ, lead time, OEM/ODM requirements and model-based compliance-document verification.
Certification scope, optional accessories and final product configuration may vary by selected model and destination market. Please provide the required model, target country and intended application before order confirmation.
