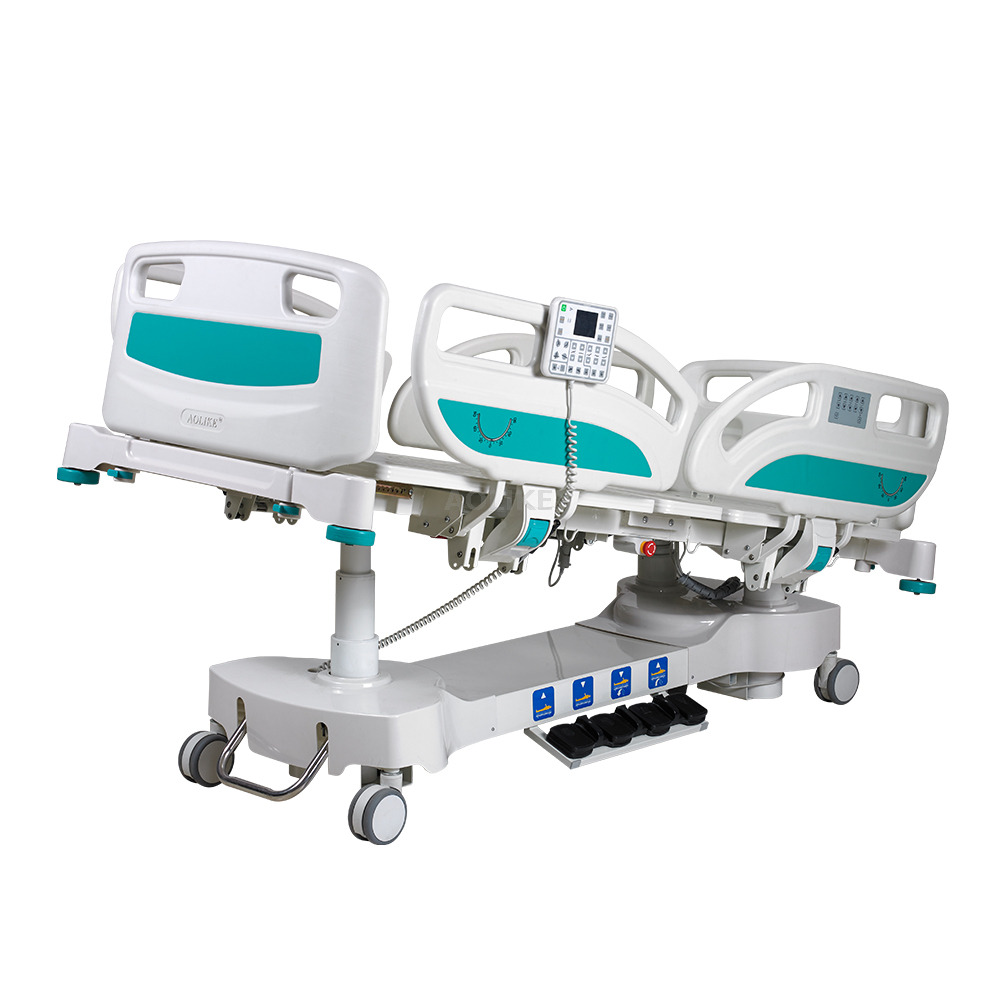

Seven Function ICU Hospital Bed Overview
ALK-BA509BZB is a seven-function ICU hospital bed designed for intensive care units, hospitals and advanced healthcare projects. It provides multiple electric positioning functions to support patient care, emergency response, transfers and daily nursing operation.
The bed supports electric backrest, leg-section and height adjustment, Trendelenburg, reverse Trendelenburg, left lateral tilt and right lateral tilt. With a 250 kg safe working load, electric and manual CPR, battery backup, central-brake castors and integrated side rail controls, it is suitable for demanding critical-care environments.
Key Specifications
- Model: ALK-BA509BZB
- Overall dimensions: L2185 × W1040 × H520–820 mm
- Mattress platform: L1945 × W900 mm (±10 mm)
- Height range: 520–820 mm
- Backrest adjustment: 0–70° (±5°)
- Leg-section adjustment: 0–30° (±5°)
- Trendelenburg and reverse Trendelenburg: 0–13° (±2°)
- Left and right lateral tilt: 0–13° (±2°)
- Side rail height from mattress platform: 450 mm (±10 mm)
- Safe working load: 250 kg
- Power supply: 220V / 11V, 50Hz / 60Hz
- Lifting column motor protection class: IPX6
Seven Electric Care Functions
- Electric backrest adjustment
- Electric leg-section adjustment
- Electric height adjustment
- Trendelenburg position
- Reverse Trendelenburg position
- Left lateral tilt position
- Right lateral tilt position
ICU Safety and Care Features
- Wholly moulded cold steel plate mattress platform
- Integrated steel frame with electrostatic powder-coated finish
- Anti-aging and anti-rust surface treatment
- Tool-free removable PE headboard and footboard
- Four wall bumpers for added protection during movement
- Four 3/4-length side rails with control systems on both sides
- Zero-transfer-gap retracting side rails to support patient transfers
- Side rail angle indicators for backrest and leg-section positions
- Foot section can return to a horizontal position
- Back-section decompression function for patient comfort
- Four 125 mm castors with central brake system
- Battery backup for operation during power failure
CPR and Control Systems
- One-key electric CPR integrated into the side rail
- Manual CPR function
- Attendant control panels on both side rails
- Handset with caregiver articulation lockout controls
- Foot switch control
- Optional LCD nursing control panel with 3.5-inch TFT colour display
The optional LCD nursing control panel can display bed data, power and battery status, and provides access to selected positioning and emergency controls.
Standard Accessories
- IV pole
- Four-position IV pole mounts
- Headboard and footboard push handles
- Optional mattress
Optional Configurations
- X-ray support at the headboard
- Scale / weighing function
- Night light
- LCD nursing control panel
- Fifth wheel
- 150–200 mm bed extension
- Mattress
Typical Applications
- Intensive care units
- Critical care wards
- Emergency and high-dependency units
- General hospitals and specialist healthcare projects
Documentation and Compliance
The supplied product information lists CE documentation, FDA-related documentation, ISO 13485, ISO 9001 and a Certificate of Free Sale. Documentation scope, validity and market applicability must be verified for the selected model, configuration and destination market before purchase or import.
Frequently Asked Questions
What are the seven functions of ALK-BA509BZB?
The seven functions are backrest adjustment, leg-section adjustment, height adjustment, Trendelenburg, reverse Trendelenburg, left lateral tilt and right lateral tilt.
What is the safe working load?
The stated safe working load of ALK-BA509BZB is 250 kg. The bed should be used according to the product manual and selected configuration requirements.
Does this ICU bed have CPR functions?
Yes. The bed includes one-key electric CPR integrated into the side rail and also provides manual CPR.
Does it have battery backup?
Yes. Battery backup supports operation during a power failure.
Can the bed be supplied with a scale or X-ray function?
Yes. The weighing function and headboard X-ray support are optional configurations. Please confirm your required options before ordering.
Can I request documents for my target market?
Yes. Send your destination country, product model and required configuration. AOLIKE can check applicable documentation for the requested model and market.
